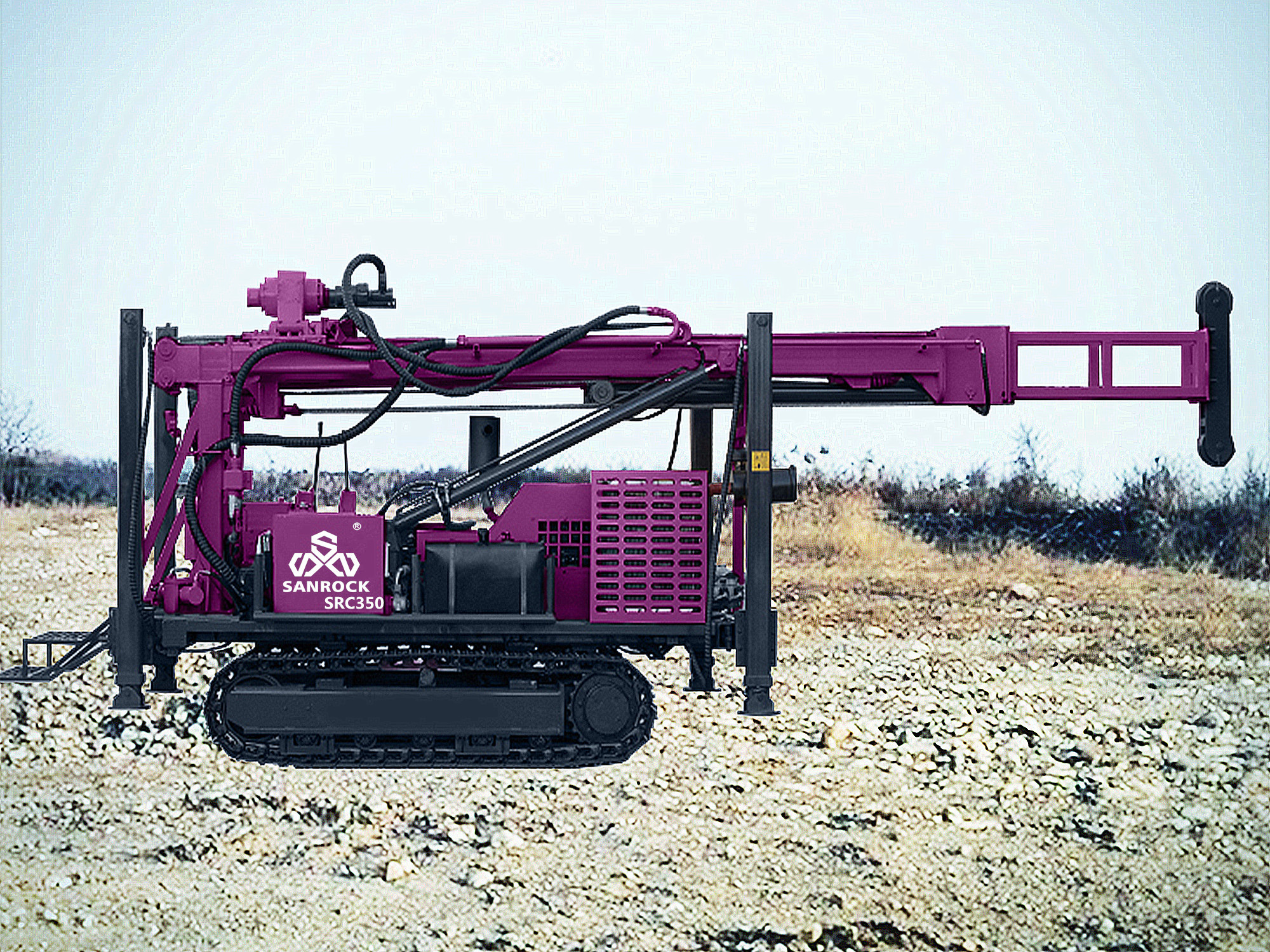

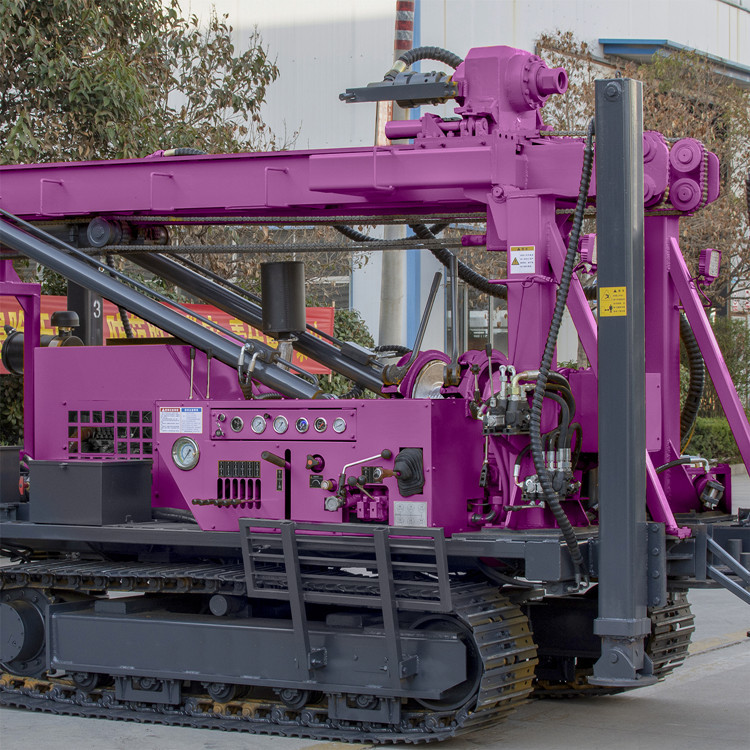

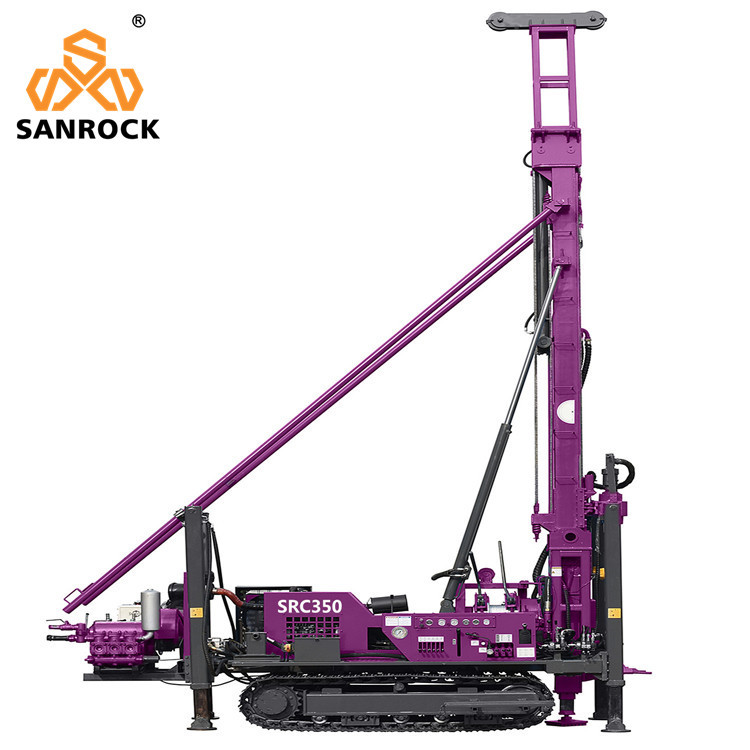

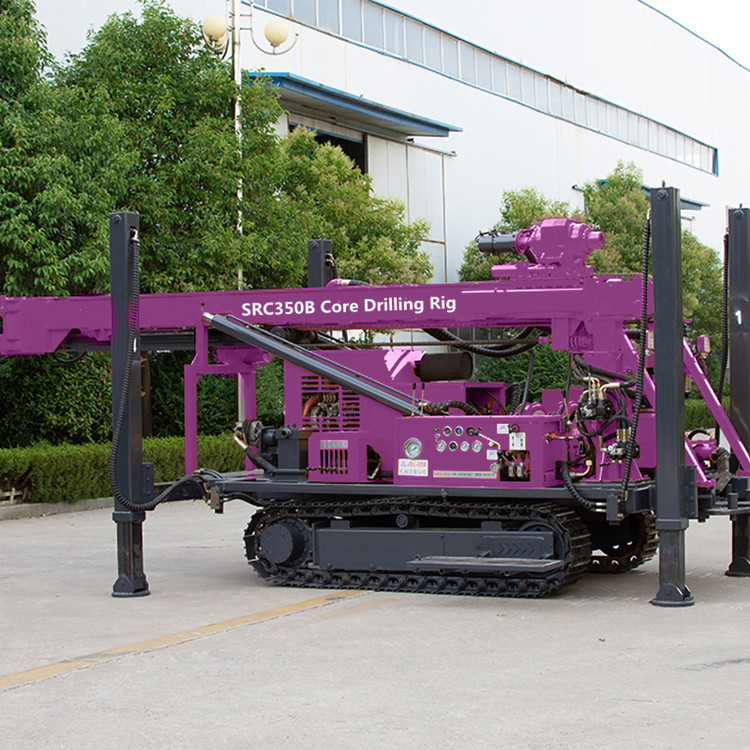

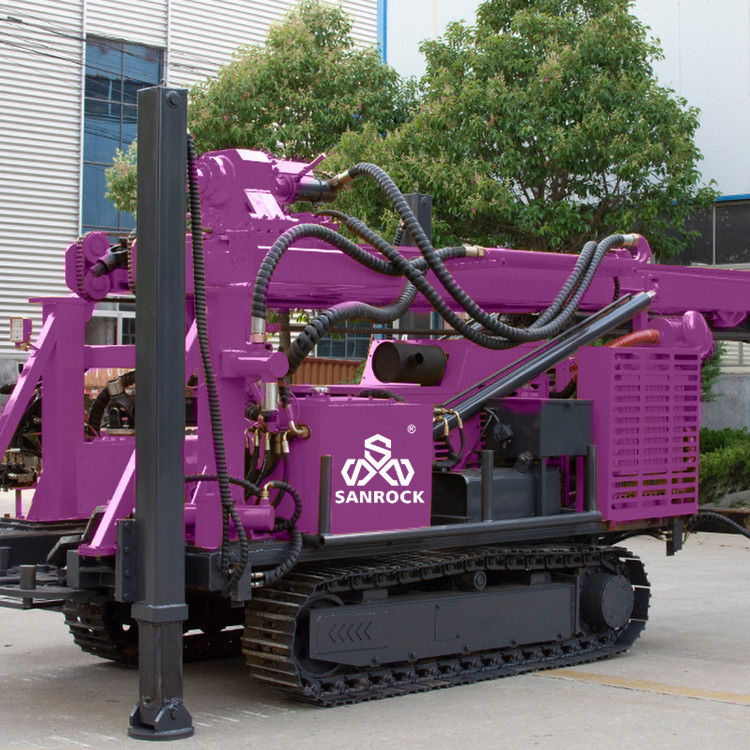

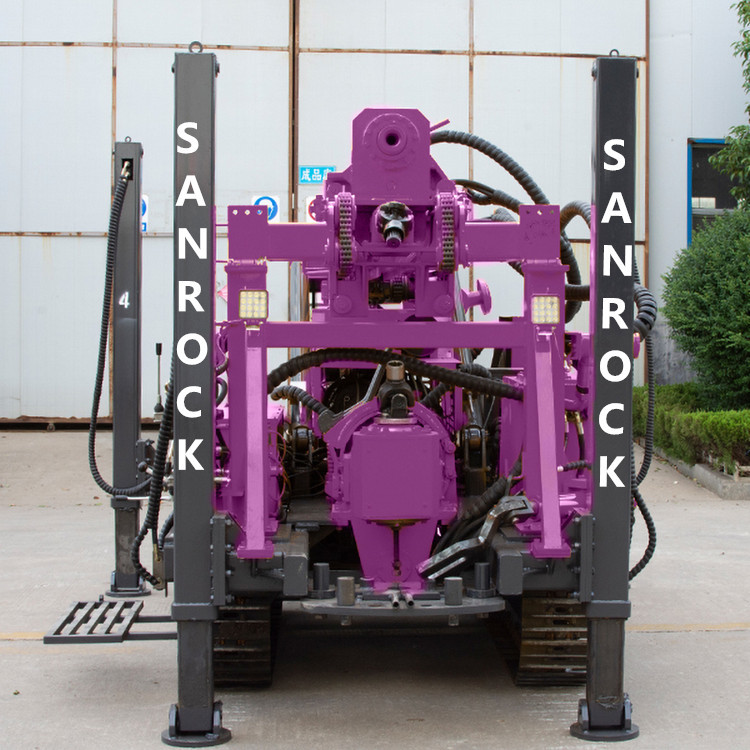

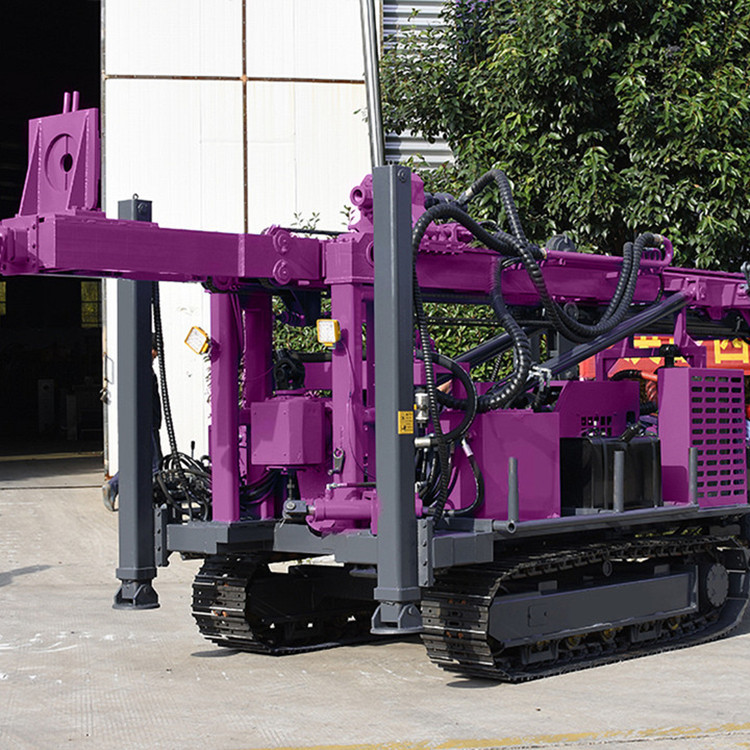

Diamond Core Drill Rig With Mud Pump Exploration Depth 350m Hydraulic Core Drilling Rig

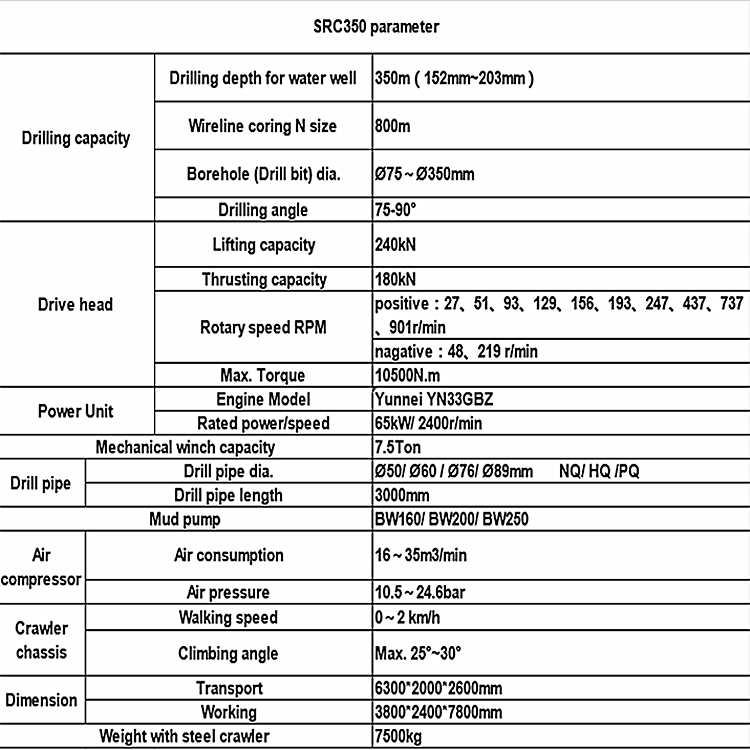

Brand Name : SANROCK

Model Number : SRC350

Certification : CE ISO 9001:2015

Place of Origin : Zhejiang, China

MOQ : 1Set/Sets per Month

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000Set/Sets per Month

Delivery Time : 15-30days

Packaging Details : Nude package for machines, Wooden box package for spare parts, Or customer demand.

Product name : core drilling machine,diamond core drilling rig,hydraulic core drilling rig

Name : borehole drilling rig,water well drilling machine,Multifunction Hydraulic Drilling Rig,core drilling rig

Feature : High Drilling Efficiency,portable,geological coring machine

Application : coring machine,Gelogical Prospecting

Usage : Water Well,Coal,water well.core sample

Type : Core Drilling Rig

Power type : Diesel

Power : 65KW

Drilling depth : 350m

Drilling diameter : 75-300mm

Engine : Yunnei

Mud Pump : BW160/ BW200/ BW250

Max. Torque : 10500N.m

Working pressure : 10.5-24.6bar

Air consumption : 16-35m3/min

Drill rod length : 3.0m

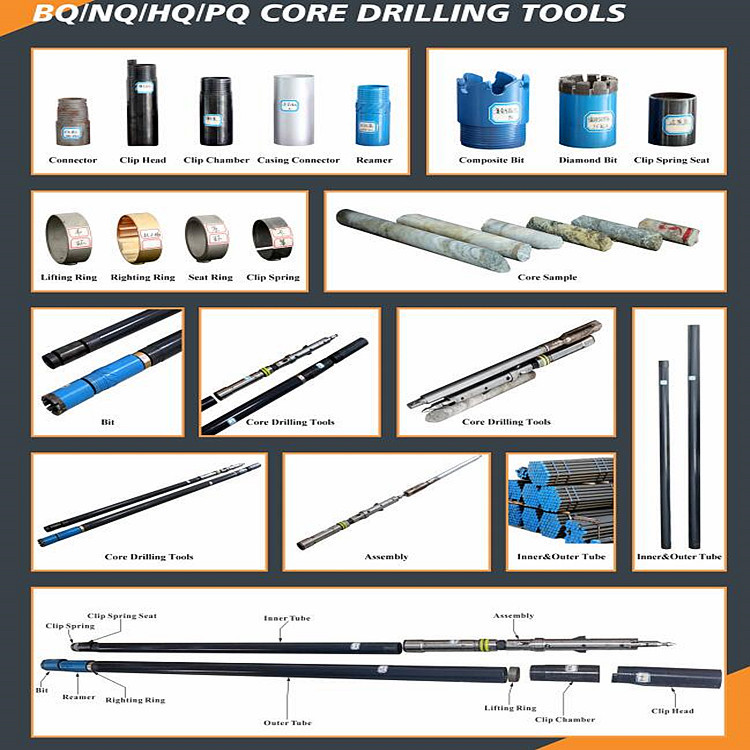

Drill rod diameter : 50mm,60mm,76mm,89mm NQ/HQ/PQ

Lifting Capacity : 240kn

Thrusting Capacity : 180kn

Mechanical Winch Capacity : 7.5Ton

Dimension(l*w*h) : 3800*2400*7800mm

Weight : 7500 KG

Contact Now

Diamond Core Drill Rig With Mud Pump Exploration Depth 350m Hydraulic Core Drilling Rig

Feature
1.Mechanical top-drive drilling rig is a machine that mixes mud drilling rig and air drilling rig in one equipment.
2.It adopts MT or AMT manual automatic transmission, 10 grade forward gears, and 2 grade reverse gears.
3.Positive and negative switching is sensitive and convenient.
4.Main drilling methods: conventional DTH hammer drilling, non-core PDC bit or tricone bit drilling.

Diamond Core Drill Rig With Mud Pump Exploration Depth 350m Hydraulic Core Drilling RigDiamond Core Drill Rig With Mud Pump Exploration Depth 350m Hydraulic Core Drilling Rig

Diamond Core Drill Rig With Mud Pump Exploration Depth 350m Hydraulic Core Drilling RigDiamond Core Drill Rig With Mud Pump Exploration Depth 350m Hydraulic Core Drilling Rig

Diamond Core Drill Rig With Mud Pump Exploration Depth 350m Hydraulic Core Drilling Rig

Diamond Core Drill Rig With Mud Pump Exploration Depth 350m Hydraulic Core Drilling Rig

Core Drilling Rig Machine for Sale is suitable for drilling works such as core drilling, general exploration, geophysical exploration,blasting hole drilling and so on.
It could be applied to exploration and prospecting of geology, metallurgy, coal, petroleum, natural gas, groundwater and other industries.

Diamond Core Drill Rig With Mud Pump Exploration Depth 350m Hydraulic Core Drilling Rig

Diamond Core Drill Rig With Mud Pump Exploration Depth 350m Hydraulic Core Drilling Rig

Products Description

Product name :Core Drilling Rig
Name: Core Drilling Machine
Application :Gelogical Prospecting,coring machine
Feature :High Drilling Efficiency,portable,geological coring machine

Diamond Core Drill Rig With Mud Pump Exploration Depth 350m Hydraulic Core Drilling Rig

Diamond Core Drill Rig With Mud Pump Exploration Depth 350m Hydraulic Core Drilling RigDiamond Core Drill Rig With Mud Pump Exploration Depth 350m Hydraulic Core Drilling RigDiamond Core Drill Rig With Mud Pump Exploration Depth 350m Hydraulic Core Drilling RigDiamond Core Drill Rig With Mud Pump Exploration Depth 350m Hydraulic Core Drilling Rig

Diamond Core Drill Rig With Mud Pump Exploration Depth 350m Hydraulic Core Drilling Rig

Company Profile

Diamond Core Drill Rig With Mud Pump Exploration Depth 350m Hydraulic Core Drilling Rig

Diamond Core Drill Rig With Mud Pump Exploration Depth 350m Hydraulic Core Drilling Rig

Diamond Core Drill Rig With Mud Pump Exploration Depth 350m Hydraulic Core Drilling Rig

1.What can you buy from us?
DTH drilling rig,core drilling rig,reverse circulation drilling rig ,highway pile driver,solar pile driver ,
anchor pile driver,rotary drill rig ,Top Hammer drill rig,underground jumbo drill rig ,DTH hammer,drill rod,
screw air compressor,water well drilling rig,truck mounted water well drilling rig,screw air compressor,
piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.

2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.

3.How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping.
Shipping efficiency depends on country and city you want to ship to.
For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.

4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
