Screw Pile Driver Solar Foundation Construction Machinery Hydraulic Pile Driver Machine

Name: Screw Pile Driver Solar Foundation Construction Machinery Hydraulic Pile Driver Machine
Brand: SANROCK
Price: 1 USD

Quality Screw Pile Driver Solar Foundation Construction Machinery Hydraulic Pile Driver Machine wholesale

Brand Name : SANROCK

Place of Origin : Zhejiang, China

MOQ : 1 Set/Sets

Price : negotiable

Supply Ability : 5000Set/Sets per Month

Packaging Details : Nude package for machines, Wooden box package for spare parts, Or customer demand.

Model Number : SRP400

Certification : CE ISO 9001:2015

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Delivery Time : 15-25days

Product Name : Pile Driver Machine,Pile Driver，Hydraulic Pile Driver

Name : Solar Pile Driver ,Screw Pile Driver，Pile Driving Equipment

Application : Solar Photovoltaic Engineering Construction,Foundation Construction

Feature : High Drilling Efficiency,Hydraulic Controlling,Portable

Drill diameter : 90-400mm

Drilling depth : 4-10m

Engine power : 78kw

Max.rotary torque : 7000N.m

Feed stroke : 3000mm

Compensation length : 900mm

Ground clearance : 380mm

Rotary speed : 0-80r/min

Air consumption : 15-17m/min

Working Pressure : 1.0-1.7Mpa

Maximun push-pull force : 20kn

Lifting force : 18kn

Volume of diesel oil tank : 100L

Climbing capacity : 30°

Walking speed : 2km/h

Dimension(L*W*H) : 5000X2200X2550mm

Weight : 5000 kg

Contact Now

Screw Pile Driver Solar Foundation Construction Machinery Hydraulic Pile Driver Machine

SRP400 Solar Pile Driver is kind of multifunctional pile construction machinery, with different configuration it can accomplish many fuctions, such as piling, pile extracting, and drilling on the stable layer of road before piling.. And mainly used in pile driving for photovoltaic solor power station , pile driving for highway guardrail, highway guardrail construction engineering construction, etc.

Feature:

With the crawler chasis and the advanced hydralic hammer or drilling head, the pile driver have great adaptablity to all kinds of terrians and complicated conditions.using new type of hydraulic technology, convenient for hole transfer . The drilling machine structure is compact, while the mast has adjustable compensation function.when drilling, the mast supported on the ground, borehole stability is good. the machine hydraulic pressure can be adjusted according to different soil textures,so as to achieve the appropriate impact power for pile driving.New model SRP400 hydraulic diesel solar pile driving driver machine equipment used with hammer is a new type of pile driver.

Products Description

Model :SRP400

Product name:Solar Pile Driver

Supporting power :Yuchai YCD4T22T-105A

Dimensions (LxWxH):5000X2200X2550mm

Net weight :5000kg

Engine power :78kw

Drilling diameter:90-400mm

Depth ofeconomical drilling: 4-10m

Drilling rod :φ89mmX3000mm

Working Pressure :1.0-1.7Mpa

Air consumption :15-17m/min

Max.rotary torque :7000N.m

Rotary speed :0-80r/min

Feed stroke :3000mm

Compensation length :900mm

Maximun push-pull force :20kn

Lifting force :18kn

Method of Feed :motor chain

Travelling speed :2km/h

Climbing capacity :30°

Ground clearance :380mm

Weight :5000kg

Dimensions (LxWxH):5000X2200X2550mm

Volume of diesel oil tank :100L

Company Profile

1.What can you buy from us?
DTH drilling rig,core drilling rig,highway pile driver,solar pile driver ,anchor pile driver,rotary drill rig ,Top Hammer drill rig,underground jumbo drill rig ,hydraulic scaling rig,DTH hammer,drill rod,screw air compressor,water well drilling rig,truck mounted water well drilling rig,reverse circulation drilling rig,environmental drilling rig,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.

2.How can I make payment?

A:You can pay by credit card, TT, Western Union, LC etc.

3.How is the shipment? How long dose it take?

A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.

4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.

Product Tags:

hand held rock drilling equipment

air powered jack hammer

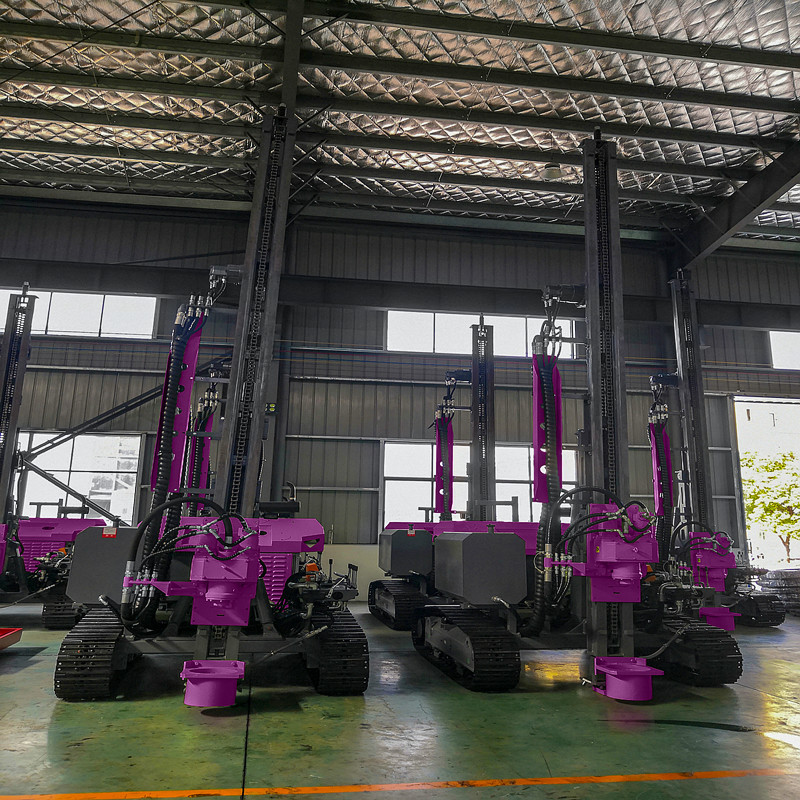

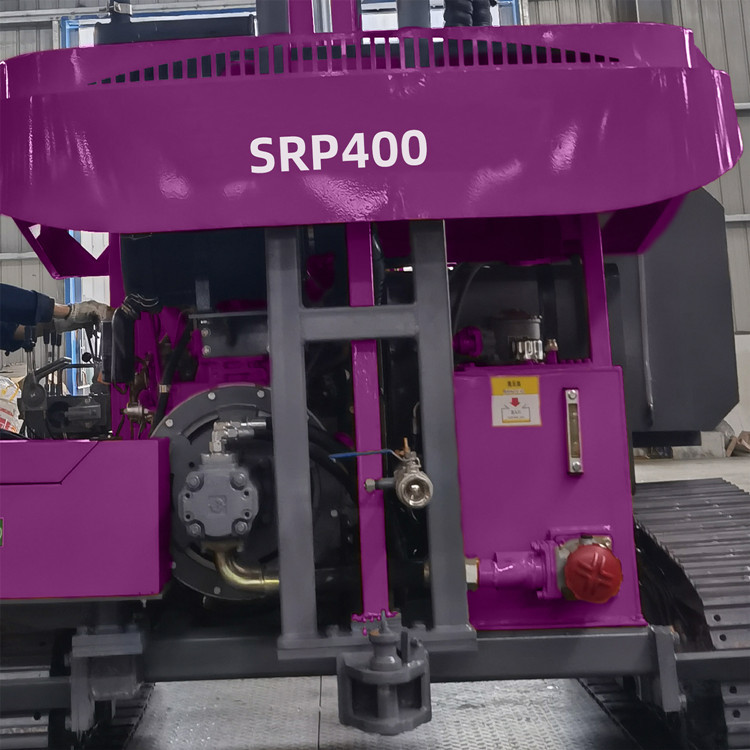

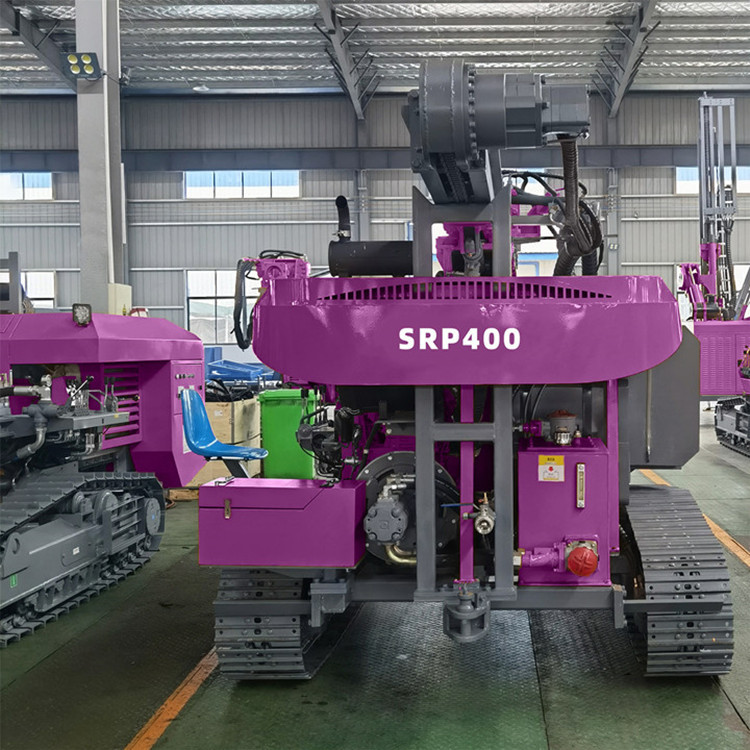

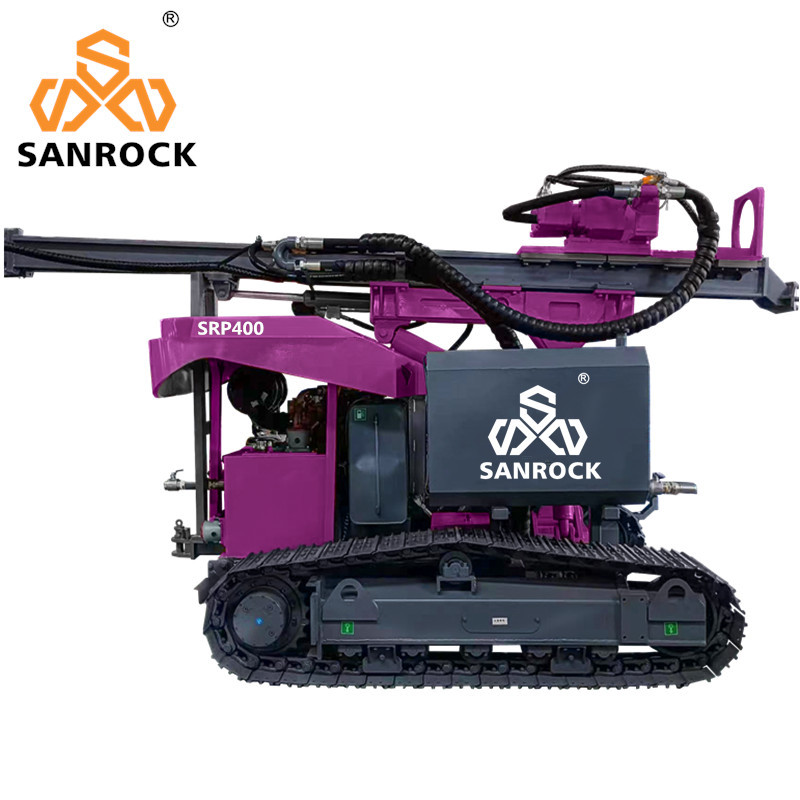

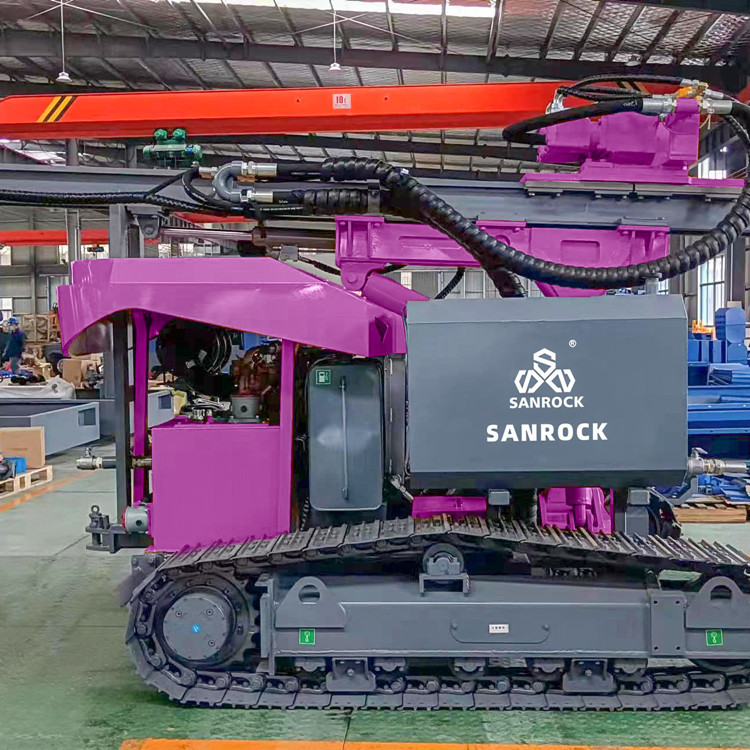

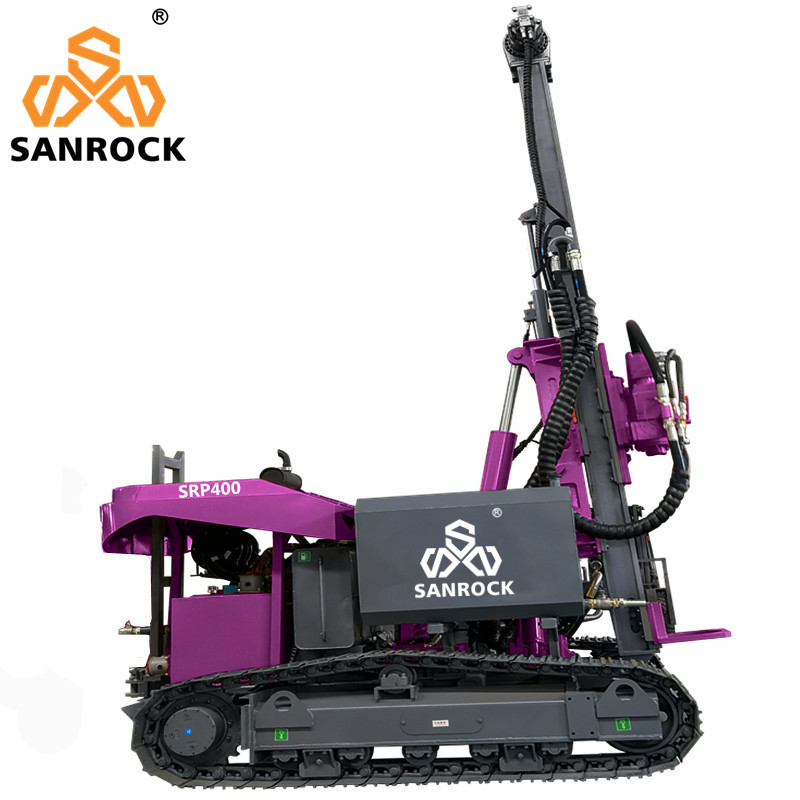

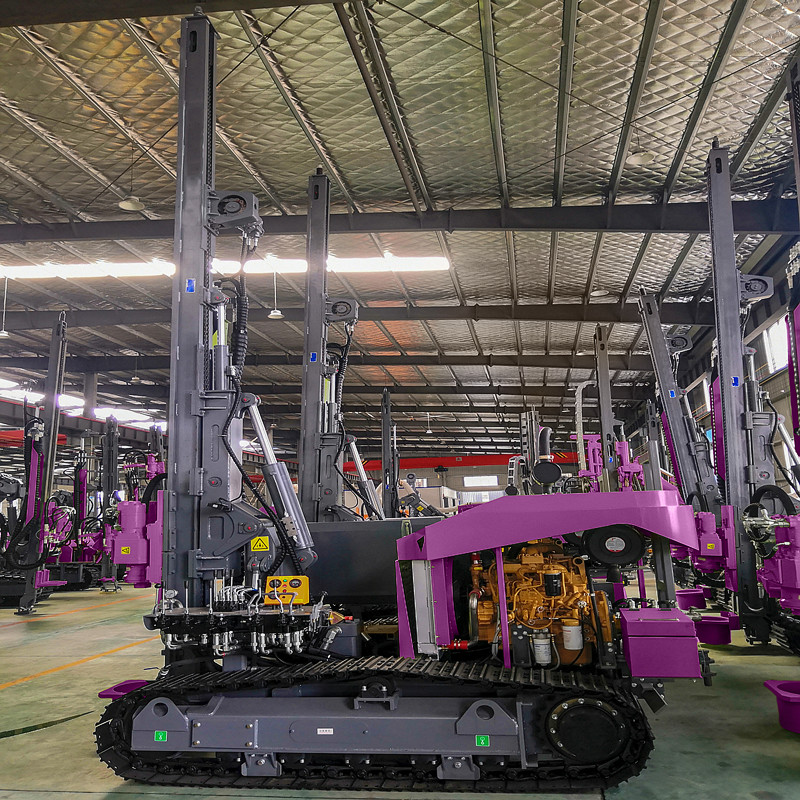

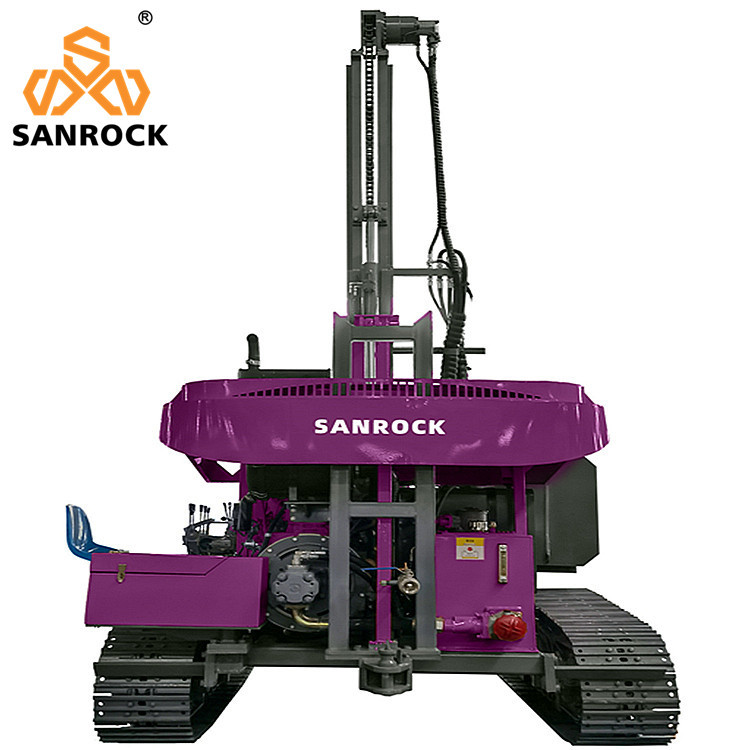

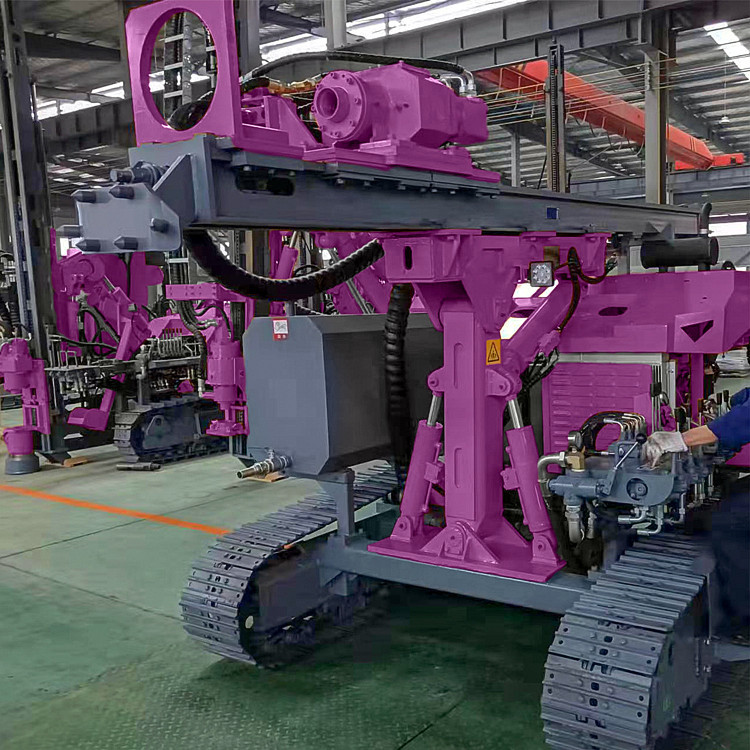

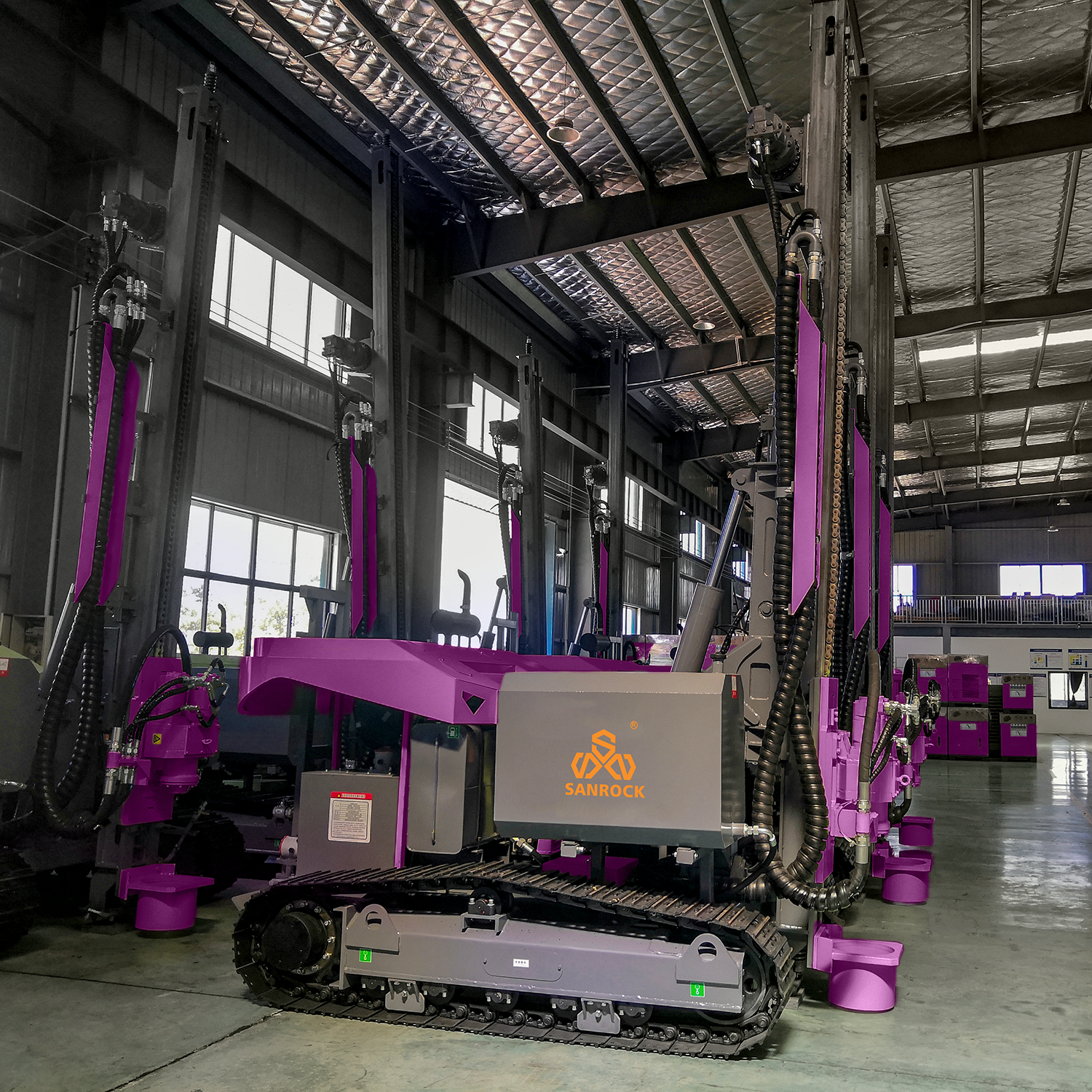

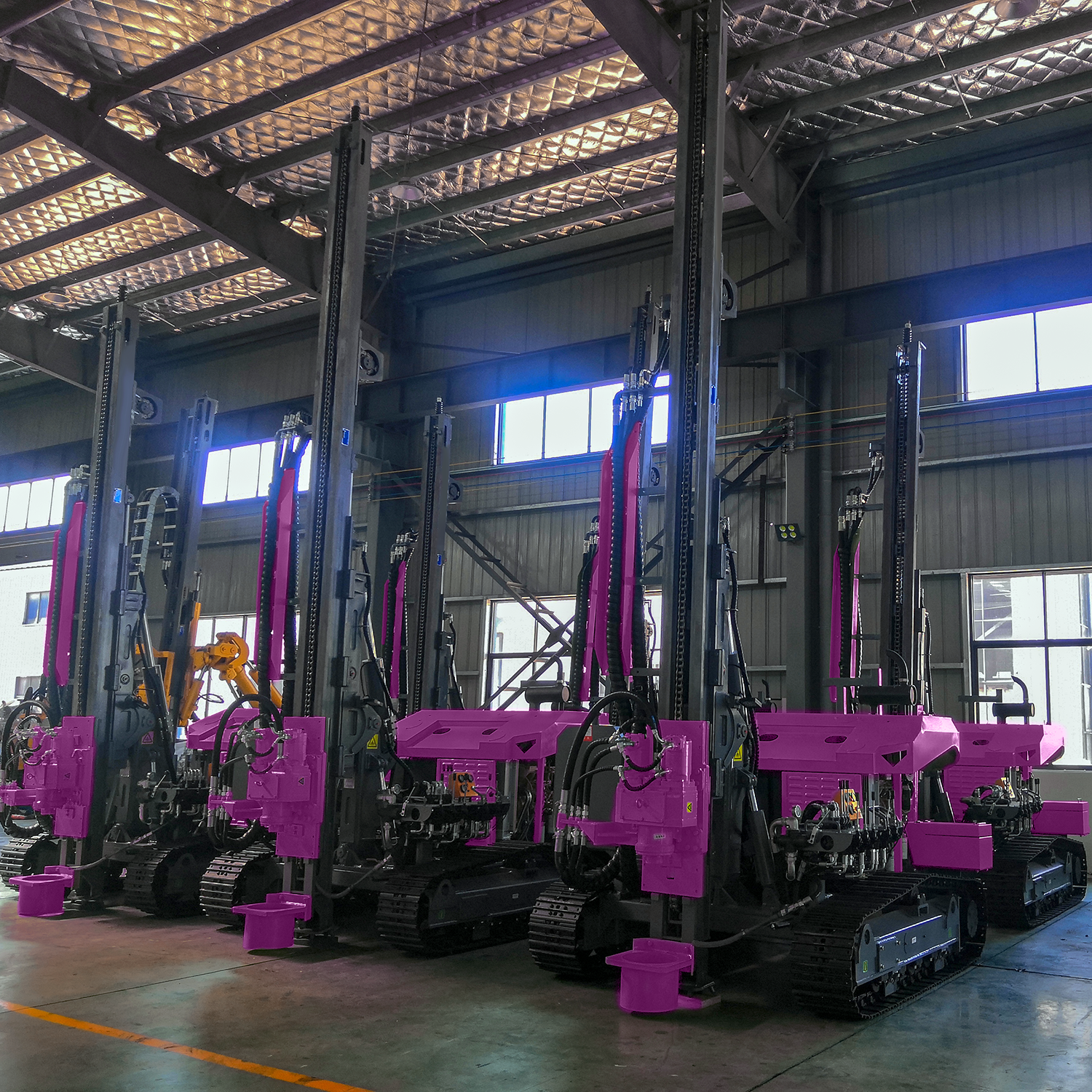

Screw Pile Driver Solar Foundation Construction Machinery Hydraulic Pile Driver Machine Images
